Introduction to Xima Industrial Series (G) Drives

The Xima Industrial Drive is a multifunctional device featuring a compact design with suitable dimensions for use in various industrial applications. This product is equipped with advanced control functions and algorithms for speed and rotation control of induction motors, torque control, slip control, and motor protection.

Warranty Inquiry

G100B075-3

Technical Features of Xima Industrial Series (G) Drives

  • PID and ON/OFF Controller
  • Torque Boost Capability
  • Network Connectivity via Modbus Protocol
  • Advanced Motor Protection
  • Overload Capacity: 150% for 1 minute
  • Various V/F Patterns (Linear, Curve, User Defined)
  • Brake Resistor Connection Capability

Key Features of Xima Industrial Series (G) Drives

  • Compatibility with Various Industrial Applications
  • Advanced Control Functions
  • V/F and Sensorless Vector Control Algorithms
  • Intelligent Autotune Function
  • Software Customization Capability to Meet Specialist Requirements
  • Compact Design with Optimized Dimensions

Various Models of Xima Industrial Series (G) Drives

Single-phase:

0.37 kW

0.75 kW

1.1 kW

1.5 kW

2.2 kW

3 kW

Three-phase:

0.75 kW

1.5 kW

2.2 kW

3 kW

4 kW

5.5 kW

7.5 kW

11 kW

15 kW

18.5 kW

22 kW

30 kW

Product Code : G100B075-3

IDrive Series
IIDrive Application Type
IIIDrive Size
IVDrive Power
VDrive Phase Count
Series ۱۰۰۱۰۰
Series ۲۰۰۲۰۰
Series ۳۰۰۳۰۰
Series ۱۰۰۱۰۰
Series ۲۰۰۲۰۰
Series ۳۰۰۳۰۰
۱۵۵*۹۵*۱۴۰Size A
۲۰۶*۱۰۳*۱۶۰Size B
۲۸۵*۱۳۲*۱۷۹Size C
۴۴۸*۲۰۵*۱۹۸Size D
۰.۳۷ (kW) ۰۰۴
۰.۷۵ (kW) ۰۰۸
۱.۱ (kW) ۰۱۱
۱.۵ (kW) ۰۱۵
۲.۲ (kW) ۰۲۲
۳ (kW) ۰۳۰
۴ (kW) ۰۴۰
۵.۵ (kW) ۰۵۵
۷.۵ (kW) ۰۷۵
۱۱ (kW) ۱۱۰
۱۵ (kW) ۱۵۰
۱۸.۵ (kW) ۱۸۵
۲۲ (kW) ۲۲۰
۳۰ (kW) ۳۰۰
Single-phase۱

Three-phase

۳

Size A : 140
Size B : 160
Size C : 197
Size D : 198

Size A : 95
Size B : 103
Size C : 132
Size D : 205

Size A : 155
Size B : 206
Size C : 285
Size D : 448

Size A : 144
Size B : 194.5
Size C : 269.5
Size D : 426

Size A : 84
Size B : 91.5
Size C : 115
Size D : 159

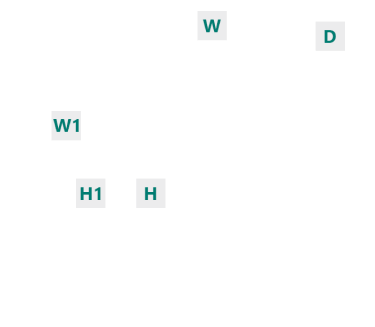

Dimensions of Xima Drives

The adjacent figures illustrate the drive dimensions from different angles.

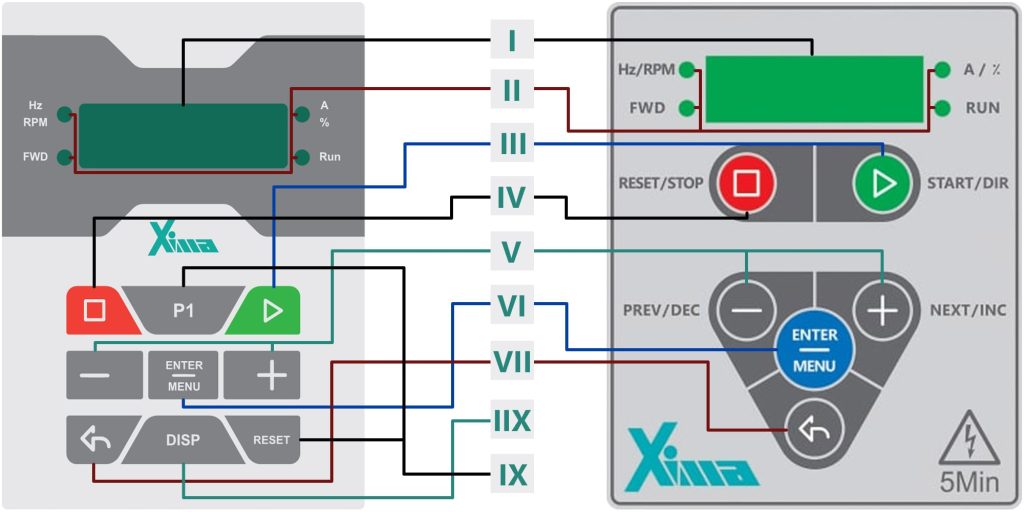

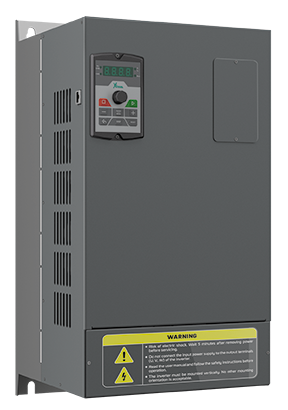

Front Panel of Xima Drives
Xima Touch Proprietary Software

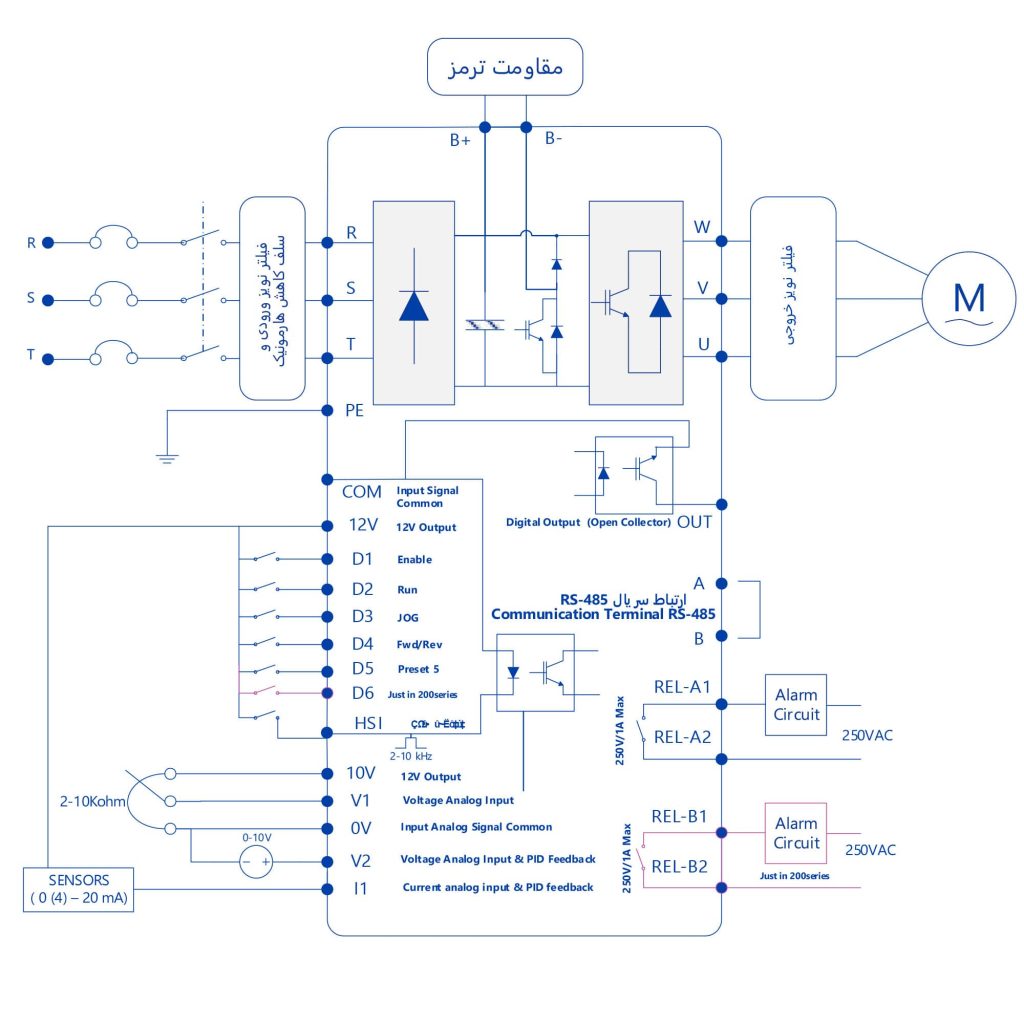

General Schematic of Xima G Series Drives

In this image, you can familiarize yourself with the various parts of the Series (G) panel.

By clicking on different items, you can view their descriptions.

LCD

A 4-digit display for showing frequency, speed, current, load value, and for viewing and adjusting parameters.

LCD
صفحه‌نمایش ۴ رقمی و برای نمایش مقادیر فرکانس، دور، جریان، مقدار بار و مشاهده و تنظیم پارامترها.

LED
چهار عدد LED برای نمایش جهت چرخش موتور، نمایش جریان یا درصد بار، فرکانس یا دور موتور، استارت یا استپ بودن دستگاه.

START/DIR کلید استارت و تغییر جهت (START/DIR). در صورت انتخاب کنترل از صفحه‌کلید توسط پارامتر  این کلید برای استارت کردن موتور به کار می‌رود. درصورتی‌که مقدار پارامتر   برابر  باشد با نگه‌داشتن این کلید به مدت ۲ ثانیه در حالتی که دستگاه استارت است، جهت موتور برعکس خواهد شد. (توضیحات بیشتر در  و )
RESET/STOP کلید استپ و ریست(RESET/STOP) . در صورت انتخاب کنترل از صفحه‌کلید توسط پارامتر  این کلید برای استپ کردن دستگاه به کار می‌رود و در مواقع بروز خطا برای ریست کردن خطا نیز به کار می‌رود. نگه‌داشتن این کلید به مدت ۲ ثانیه، خطای رخ‌داده را ریست می‌کند. (خطای اتصال کوتاه یا  با این کلید ریست نمی‌شود و دستگاه باید خاموش و روشن شود) توجه کنید که اگر خطایی مکرراً رخ می‌دهد از ریست کردن آن خودداری نموده و حتماً با شرکت تماس حاصل نمایید تا از خرابی کلی دستگاه جلوگیری به عمل آید.

NEXT/INCPREV/DEC
کلید افزایش/بعدی (NEXT/INC) و کلید کاهش/قبلی (PREV/DEC). در هنگام تنظیم پارامترها برای حرکت روی پارامترهای مختلف و یا تغییر مقدار یک پارامتر (در صورت انتخاب شدن پارامتر) به کار می‌رود. در ادامه توضیحات بیشتر را مشاهده خواهید نمود.

ENTER کلید Enter برای رفتن به صفحه پارامترها به و یا انتخاب و ذخیره یک پارامتر و یا اجرای فرمان‌هایی مثل تنظیم خودکار و برگرداندن پارامترها به کار می‌رود.در ادامه توضیحات بیشتر را مشاهده خواهید نمود.
BACK کلید خروج (Back) که برای خروج از هر مرحله در هنگام تنظیم پارامترها به کار می‌رود.

DISP (G۲۰۰)
حالت صفحه نمایش را تغییر می‌دهد.

P۱/RESET (G۲۰۰)
رزرو شده.

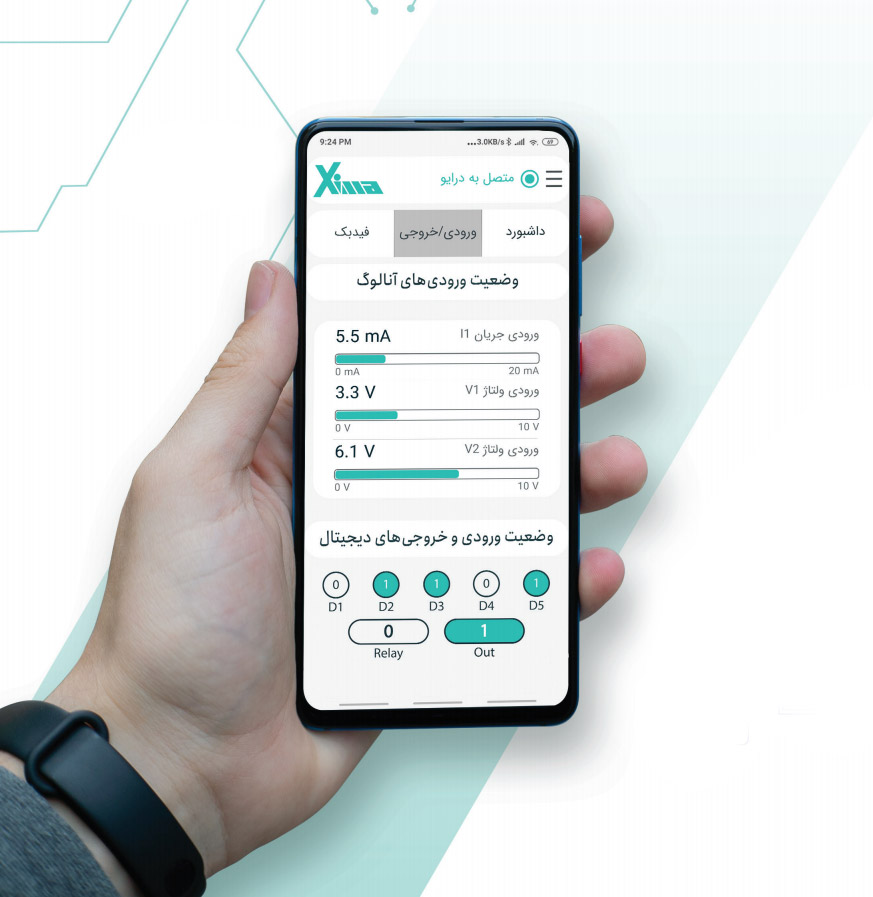

XIMA Touch Dedicated Software

  • Accessing and configuring drive parameters via mobile phone.
  • Predefined settings for various industrial applications
  • Remote connection to the service center for drive configuration by XIMA specialists
  • Viewing monitoring parameters and fault history
More Details
Technical Specifications

Product Model



Power (kW)Power (HP)Dimensions (mm)SizeWeight
G100A004-10.370.5155 * 95 * 140ALess than 1600 grams
G100A008-10.751155 * 95 * 140ALess than 1600 grams
G100B008-30.751206 * 103 * 160BLess than 2200 grams
G100A011-11.11.5155 * 95 * 140ALess than 1600 grams
G100B015-11.52206 * 103 * 160BLess than 2200 grams
G100B015-31.52206 * 103 * 160BLess than 2200 grams
G100B022-12.23206 * 103 * 160BLess than 2200 grams
G100B022-32.23206 * 103 * 160BLess than 2200 grams
G100B030-134206 * 103 * 160BLess than 2200 grams
G100B030-334206 * 103 * 160BLess than 2200 grams
G100B040-345.5206 * 103 * 160BLess than 2200 grams
G100B055-35.57.5206 * 103 * 160BLess than 2200 grams
G200C075-37.510285 * 132 * 179CLess than 3600 grams
G200C110-31115285 * 132 * 179CLess than 3600 grams
G200C150-31520285 * 132 * 179CLess than 3600 grams
G300D185-318.525448 * 205 * 198DLess than 10,800 grams
G300D220-32229.5448 * 205 * 198DLess than 10,800 grams
G300D300-33040448 * 205 * 198DLess than 10,800 grams
Product ModelPower (kW)Input VoltageOutput VoltageInput Current (A)Output Current (A)
G100A004-10.37220 V
Single-phase
50–60 Hz		220 V
Three-phase
0–800 Hz		5.63
G100A008-10.75220 V
Single-phase
50–60 Hz		220 V
Three-phase
0–800 Hz		9.85
G100B008-30.75380 V
Three-phase
50–60 Hz		380 V
Three-phase
0–800 Hz		3.23
G100A011-11.1220 V
Single-phase
50–60 Hz		220 V
Three-phase
0–800 Hz		126
G100B015-11.5220 V
Three-phase
0–800 Hz		220 V
Three-phase
0–800 Hz		18.59
G100B015-31.5380 V
Three-phase
50–60 Hz		380 V
Three-phase
0–800 Hz		5.45
G100B022-12.2220 V
Single-phase
50–60 Hz		220 V
Three-phase
0–800 Hz		2211
G100B022-32.2380 V
Three-phase
50–60 Hz		380 V
Three-phase
0–800 Hz		7.67
G100B030-13220 V
Single-phase
50–60 Hz		 220 V
Three-phase
0–800 Hz		34.716.5
G100B030-33380 V
Three-phase
50–60 Hz		380 V
Three-phase
0–800 Hz		9.79
G100B040-34380 V
Three-phase
50–60 Hz		380 V
Three-phase
0–800 Hz		10.810
G100B055-35.5380 V
Three-phase
50–60 Hz		380 V
Three-phase
0–800 Hz		14.213
G200C075-37.5380 V
Three-phase
50–60 Hz		380 V
Three-phase
0–800 Hz		2119
G200C110-311380 V
Three-phase
50–60 Hz		380 V
Three-phase
0–800 Hz		28.926
G200C150-315380 V
Three-phase
50–60 Hz		 380 V
Three-phase
0–800 Hz		40.336
G300D185-318.5380 V
Three-phase
50–60 Hz		380 V
Three-phase
0–800 Hz		4540
G300D220-322380 V
Three-phase
50–60 Hz		380 V
Three-phase
0–800 Hz		5447
G300D300-330380 V
Three-phase
50–60 Hz		380 V
Three-phase
0–800 Hz		7263
PWM Frequency

2 – 10 kHz

Analog Voltage Input Impedance

14.3 kΩ

Analog Current Input Impedance

150 Ω

Digital Input Impedance

9.5 kΩ

Efficiency

% 97.5

Number of Inputs and Outputs

2 Analog Voltage Inputs

1 Analog Current Input

5 Digital Inputs


Enclosure Standard

IP 20

Enclosure Structure

Reinforced Plastic and Metal

Accessories Included

Catalog

Screws and Washers

Mounting Template

Mini Screwdriver

RS-485 Port

Available (1× LAN Port, 1× Serial Port)

Detachable Keypad

Coming Soon

Country of Manufacture

Iran


Display

4 Seven Segments

4 LEDs

Keypad

6 (8) Keys

Output Frequency Range

0-800 Hz

Frequency Resolution

0.001 Hz (0.1 Hz display)

PWM Frequency

2.0 – 10.0 KHz

PWM Modulation

Space Vector

PWM Resolution

> 11bit

ADC Resolution

12 bit / 4 Msps

DSP

32 bit Motor Control

Control Sampling Frequency

1000 Hz

Input Frequency

47-63 Hz

Input Voltage

200 – 260 (1PH)

330 – 460 (3PH)

Output Voltage

0 – Input Voltage

Efficiency (PF=1 , Vout=Vin)

> %97.5

Phase Short Circuit Protection

To phase

Ground

+Bus

-Bus

Brake

DC Brake

Dynamic Brake

Voltage Limit Threshold (if enabled)

380 V (1PH)

700 V (3PH)

Brake ON Voltage

370 V (1PH)

690 V (3PH)

Brake OFF Voltage

365 V (1PH)

680 V (3PH)

Over Voltage Fault

400 V (1PH)

720 V (3PH)

Current Limit Threshold

Adjustable

Over Current Threshold

2x Drive Rated Current

Analog Voltage Input Impedance

14.3 Kohm

Analog Current Input Impedance

150 ohm

Digital Input Impedance

9.5 Kohm

12V Output Voltage

12-14 V

12V Supply Output Impedance

5 ohm (PTC protected)

Torque Control Response

< 200ms

Start Torque

150% Rated Output Torque

0.5 Hz

Torque Control Precision

± 0.5% Rated Output Torque

Ambient Temperature

-10 < Ta < 50 C

Humidity

< %85

Altitude

Below 1000m Without Derating

Vibration

0.5 g X, Y, Z

Stall Prevention

Acceleration

Deceleration

Operation

Overcurrent

180% Rated Current For 30 s

Overload Warning

150% Rated Current For 1 min

Motor Thermal Protection

Overload Curve

Overload Curve

VDC > 750 V (380V Class)

VDC > 390 V (220V Class)

Undervoltage

VDC < 350 V (380V Class)

VDC < 200 V (220V Class)

Overheat

Protection By Thermistor

Grounding

Protection By DC Current Sensor

Phase loss

Input – Output

Momentary Power Loss

10ms at Nominal Voltage and Power

Applications and Uses of the G Series Products

A drive or motor speed controller is used to enable soft starting and to regulate the speed of AC electric motors (including both single-phase and three-phase types) in various industrial sectors. Drives are capable of continuously adjusting the motor speed from zero up to several times the motor’s nominal speed.

Speed regulation in electric motors not only enhances the flexibility of industrial processes but also plays a significant role in energy saving—such as reducing the inrush current during startup and enabling optimal motor control.

The XIMA G-series drives, available in 15 different models, are designed to meet the needs of users across a wide range of applications, including:

  • Roll winders and unwinders

  • Injection molding machines

  • Compressors

  • Packaging machinery

  • Washing machines

  • Printing machines

  • Drilling, turning, and CNC machines

  • Fans and blowers

  • Extruders

  • Weaving and textile machines

  • Conveyor systems

  • And more.
